| PRODUCT |
|
| SEB-001 |

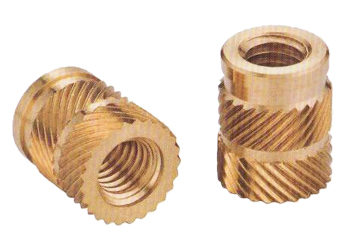

SEB-001
●Hot melt method implants
●Round design, easy to locate
●Instead oblique flower design, twisted high tensile strength |
 |
| |
|
|

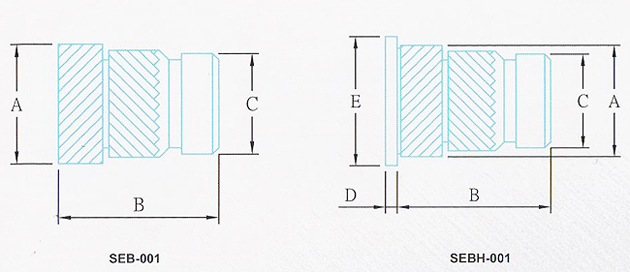

Thread
|
Length
|
Cap thickness
|
Head diameter
|
OD
|
Leading end
|
|
M2
|
4.0
|
0.53
|
4.8
|
3.6
|
3.1
|
|
M2.5
|
5.7
|
0.61
|
5.5
|
4.6
|
3.9
|
|
M3
|
5.7
|
0.61
|
5.5
|
4.6
|
3.9
|
|
M3.5
|
7.1
|
0.76
|
6.4
|
5.4
|
4.7
|
|
M4
|
8.1
|
0.91
|
7.1
|
6.3
|
5.5
|
|
M5
|
9.5
|
1.09
|
7.9
|
7.1
|
6.3
|
|
M6
|
12.7
|
1.35
|
9.5
|
8.7
|
7.9
|
|
M8
|
12.7
|
1.35
|
11.1
|
10.2
|
9.5
|
|
M10
|
12.7
|
1.60
|
14.0
|
12.6
|
11.8
|
|
M12
|
15.9
|
2.00
|
19.0
|
16.7
|
15.8
|
|
| |
 |
| |
|
Thread
|
Length
|
OD
|
Leading end
|
|
0-80
|
115
|
136
|
122
|
|
2-56
|
115
|
136
|
122
|
|
4-40
|
135
|
172
|
157
|
|
6-32
|
150
|
220
|
203
|
|
8-32
|
185
|
250
|
230
|
|
10-24
|
225
|
296
|
272
|
|
10-32
|
225
|
296
|
272
|
|
1/4-20
|
300
|
375
|
354
|
|
1/4-28
|
300
|
375
|
354
|
|
5/16-18
|
335
|
469
|
439
|
|
5/16-24
|
335
|
469
|
439
|
|
3/8-16
|
375
|
563
|
530
|
|
3/8-24
|
375
|
563
|
530
|
|
| |
