PRODUCT

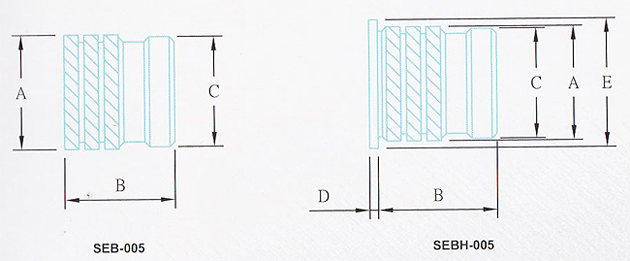

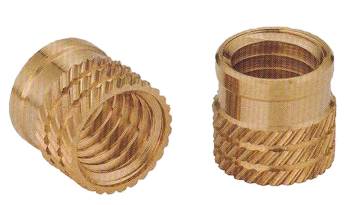

SEB-005
SEB-005

●Suitable thermosetting plastic material
● High torque performance

ISO METRIC 公制

螺牙

Length

Cap thickness

Head diameter

OD

Leading end

M2
4.1
0.51
4.8
3.3
3.0
M2.5
5.3
0.58
5.5
4.2
3.7
M3
5.3
0.58
5.5
4.2
3.7
M3.5
6.3
0.74
6.4
5.0
4.5
M4
7.4
0.89
7.1
5.8
5.3
M5
8.3
1.07
7.9
6.6
6.1
M6
9.2
1.32
9.5
8.2
7.7
M8
9.2
1.32
11.1
9.7
9.3
M10
9.2
1.57
14.0
12.7
12.2



Thread

Length

Cap thickness

Head diameter

OD

Leading end

2-56
162
020
187
131
117
4-40
208
023
217
165
146
6-32
247
029
250
196
178
8-32
292
035
281
228
209
10-24
326
042
312
259
241
10-32
326
042
312
259
241
1/4-20
362
052
375
332
304
1/4-28
362
052
375
332
304
5/16-18
362
052
437
383
365
5/16-24
362
052
437
383
365
3/8-16
362
062
551
499
481
3/8-24
362
062
551
499
481
